MG Single Axis Tracker System-1P

MG Horizontal single axis tracking system means that PV modules are mounted on a horizontal axis and track the sun in the east-west direction along the horizontal axis. Horizontal single-axis tracking system is mainly composed of: solar cell module mounting bracket, horizontal rotating shaft, rotating driving mechanism, wind speed detection device and tracking controller.

The system is controlled by the tracking controller, with simple structure, easy installation, flexible response, good reliability and strong fault identification ability. Compared with traditional fixed inclination installation, the generating capacity can be increased by 25% (depending on local conditions).

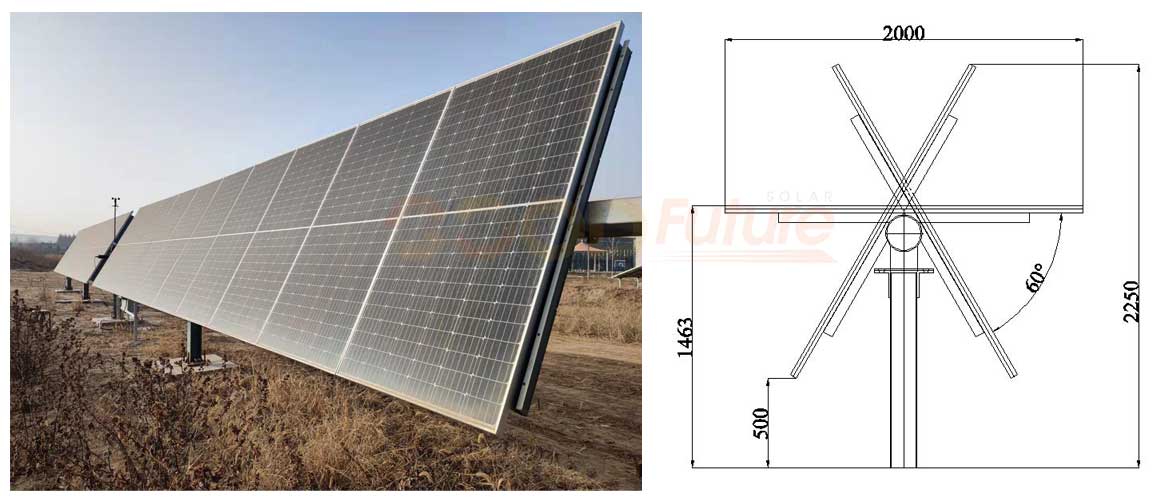

MG Single Axis Tracker System-1P

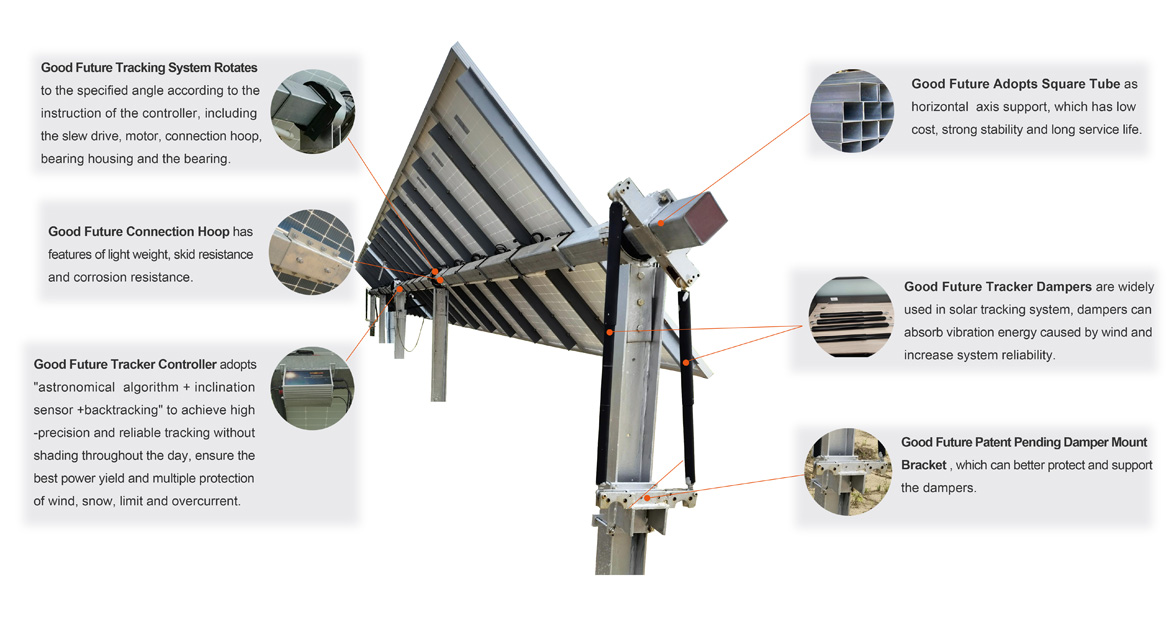

MG Single Axis Tracker System Main Parts

MG Single Axis Tracker System-1P Features

MG Solar Tracking System Technical Parameters

Tracking Range 士 60°
Driving System Slew drive, 24VDC motor
Modules per Tracker Max.80 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥ 25%
Foundation Options All foundation types
Terrain Adaption Up to 20% N-S slope, no limit of E-W slope
Structure Material Hot dipped galvanized/Pre-galvanized steel
Power Consumption 0.2-0.5KWh/day
Power Supply Mode String powered or AC powered
Standard Design Wind Speed 32m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - 60℃
Control Algorithm Astronomical algorithms + Tilt sensor
Tracking Accuracy ±1°
String-Powered Yes
Backtracking Yes
Night Position Yes
