ZG Single Axis Tracker System-2P

ZG Single Axis Tracker System-2P

The structure of horizontal single axis tracking system 1P&2P is similar. Compared with 1P, 2P saves the investment, generates electricity more efficiently, and at the same time, the land utilization ratio is also greatly improved.

Send Email Request a Quote ZG Datasheet

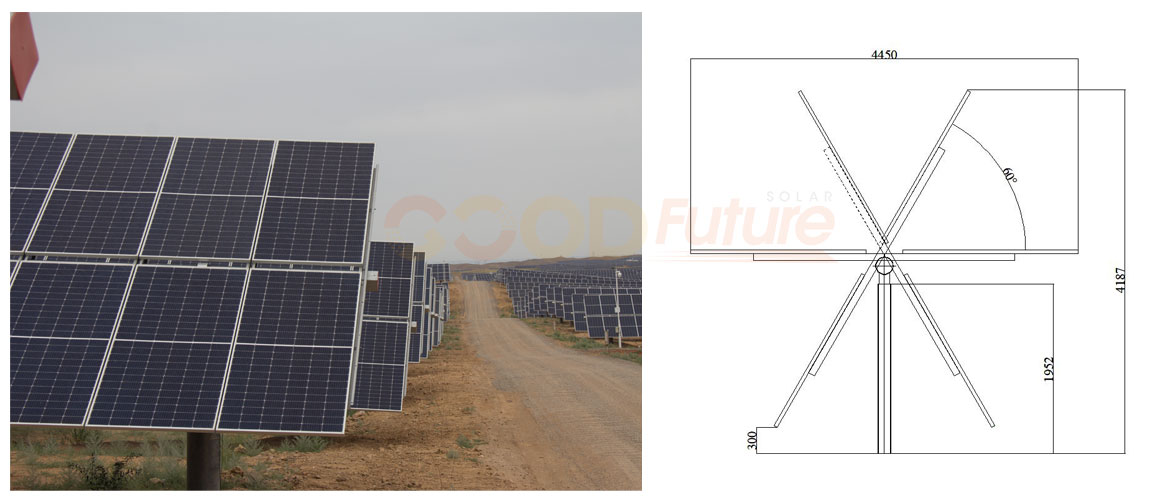

ZG Solar Single Axis Tracker

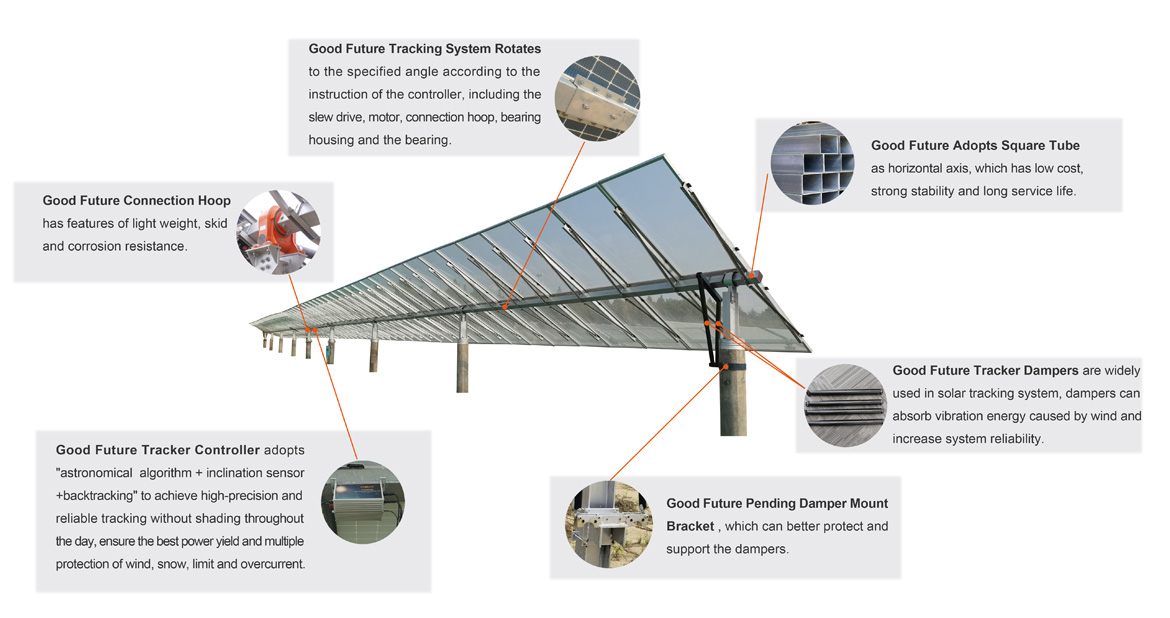

ZG Solar Single Axis Tracker Main Parts

ZG Solar Single Axis Tracker Features

ZG Solar Tracker Technical Parameters

Tracking Range 士 60°
Driving System Slew drive, 24VDC motor
Modules per Tracker Max.120 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥35%
Terrain Adaption Up to 20% N-S Slope, no limit of E-W slope
Structure Material Hot dipped galvanized/Pre-galvanized steel
Power Supply String powered or AC powered
Power Consumption 0.2-0.5KWh/day
Standard Design Wind Speed 18m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - 60℃
Control Algorithm Astronomical algorithms + Tilt sensor
Tracking Accuracy ± 1°
String-Powered Yes
Backtracking Yes
Night Position Yes
