Aluminum bearings for PV tracking systems

High radial loads

Good thermal property

Easy assembly and disassembly

No lubrication, No maintenance, Low cost

UV-resistant, Corrosion resistant, Dirt-resistant

Arc surface design avoids falling out

Compensation for misalignment errors that always make the best rotation condition on trackers

Send Email Request a Quote

banner轴承-1



GF Bearing

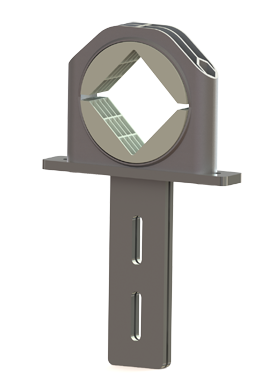

a1001 za100a
A100 A100A ZA100 ZA100A
a1001 za100a
A120 A120A ZA120 ZA120A









GF Bearings Specifications

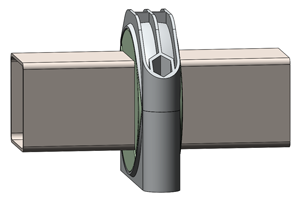

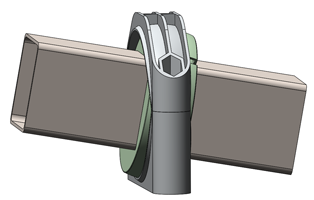

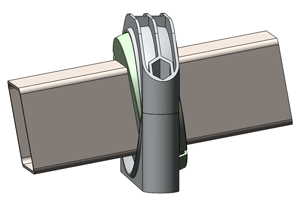

  • A100/A120

Housing: Aluminum

Bearing: Self-lubricating material

A100 For tube size: 100×100 mm

A120 For tube size: 120×120 mm

Maximum pivot angle: ±10°

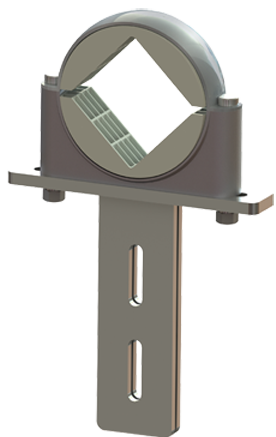

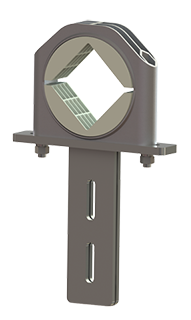

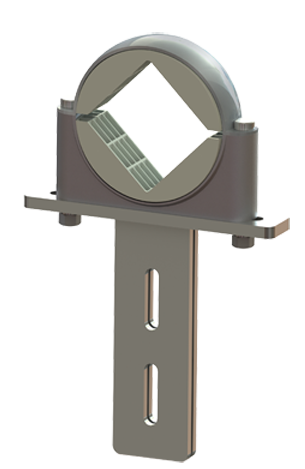

  • A100A/A120A

za120a-detail

Housing: Aluminum

Bearing: Self-lubricating material

T-Shape base: Hot-dip galvanized steel

A100 For tube size: 100×100 mm

A120 For tube size: 120×120 mm

Maximum pivot angle: ±10°







Adaptability







GF Bearings Specifications

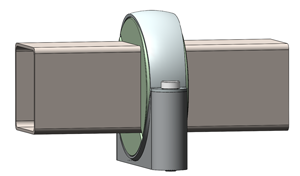

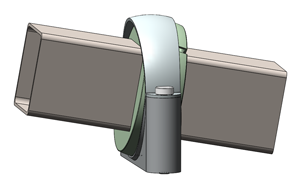

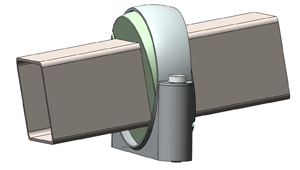

  • ZA100/ZA120

Housing: Zn-Al-Mg + Aluminum

Bearing: Self-lubricating material

ZA100 For tube size: 100×100 mm

ZA120 For tube size: 120×120 mm

Maximum pivot angle: ±10°

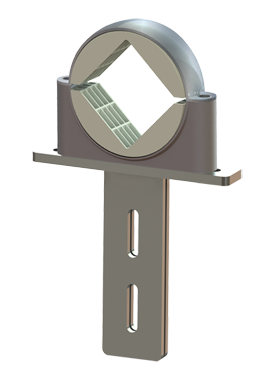

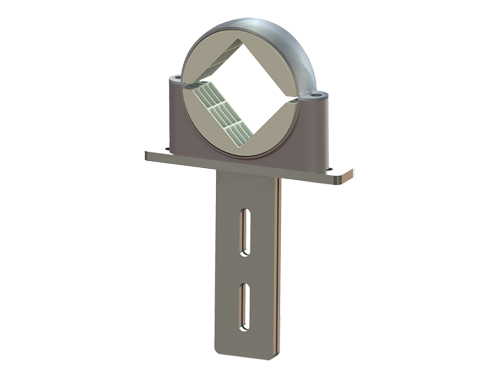

  • AZ100A/ZA120A
za100a-detail

Housing: Zn-Al-Mg + Aluminum

Bearing: Self-lubricating material

T-Shape base: Hot-dip galvanized steel

ZA100A For tube size: 100×100 mm

ZA120A For tube size: 120×120 mm

Maximum pivot angle: ±10°







Adaptability
