JG Solar Panel Ground Mount Solar Racking System

JG Solar Panel Ground Mount Solar Racking System is a special design for the placement, installation and fixation of solar panels in the solar photovoltaic power generation plant system.

The JG Solar Panel Ground Mount Solar Racking System is a support structure fixed with a certain orientation, arrangement and spacing. The installation needs to combine the geography, climate and solar energy resources of the construction site of the solar module, so that the whole PV power system can get the maximum power output.

The material of JG Solar Panel Ground Mount Solar Racking System is mainly carbon steel and stainless steel. The surface of carbon steel is hot-dip galvanized and will not rust after 30 years of outdoor use. The solar Solar PV fixed structure has the characteristics of no welding, no drilling, 100% adjustable and 100% reusable.

Send Email Request a Quote

JG Datasheet

JG Solar Panel Ground Mount Solar Racking System Feature

* Installation location：Ground, building roof or curtain wall

* Installation orientation：Usually South (except tracking system)

* Installation angle：Equal to or close to the local latitude of installation

* Load requirements：Wind load, snow load, seismic requirements

* Arrangement and spacing：Arrangement and spacing

* Quality requirement：10 years (Extended 25 years Warranty Available)

JG Solar Panel Ground Mount Solar Racking System Parameters

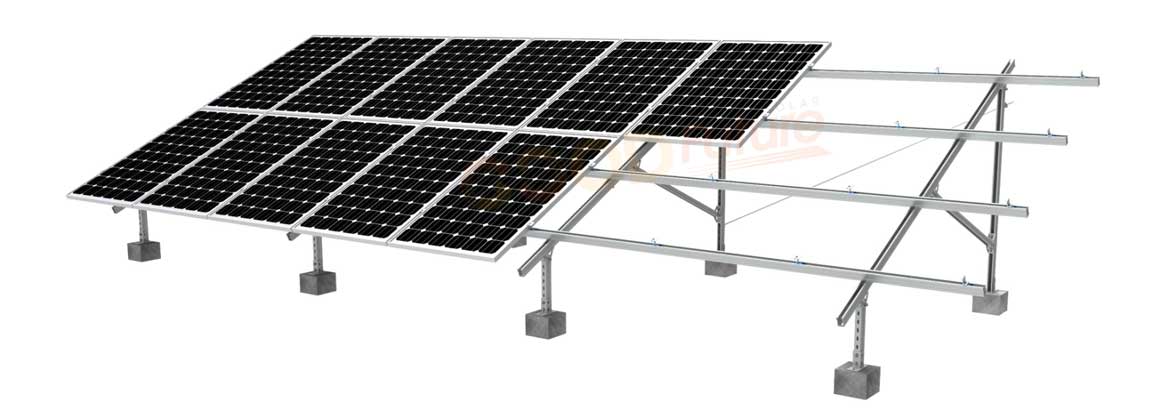

Mounted type	South facing ground mounted fixed tilted solar panel ground mount solar racking system
Modules compatibility	Mono-facial & Bi-facial
Modules configuration	2 in portrait, 3 in portrait, 4 in landscape
String voltage	1000 / 1500 V
Table length	Customizable as per site requirements
Tilt angle	10° - 35°
Temperature range	-30°C +60°C

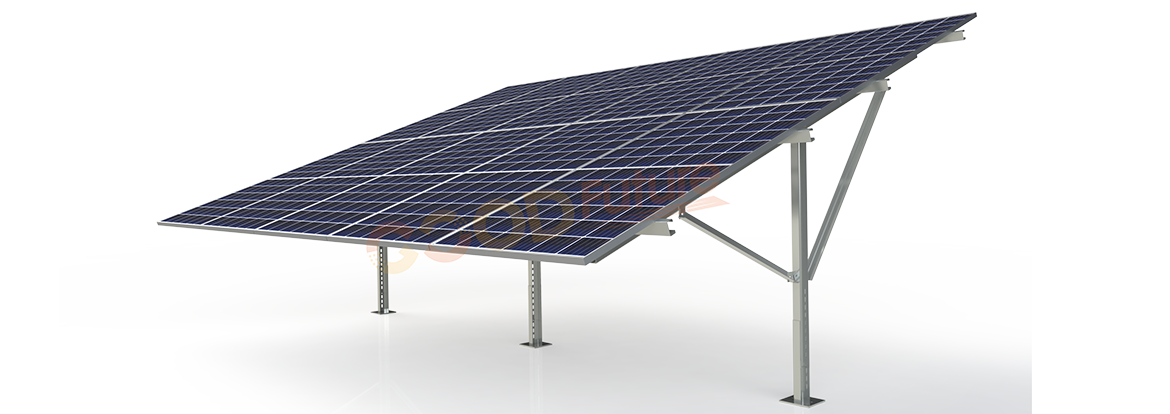

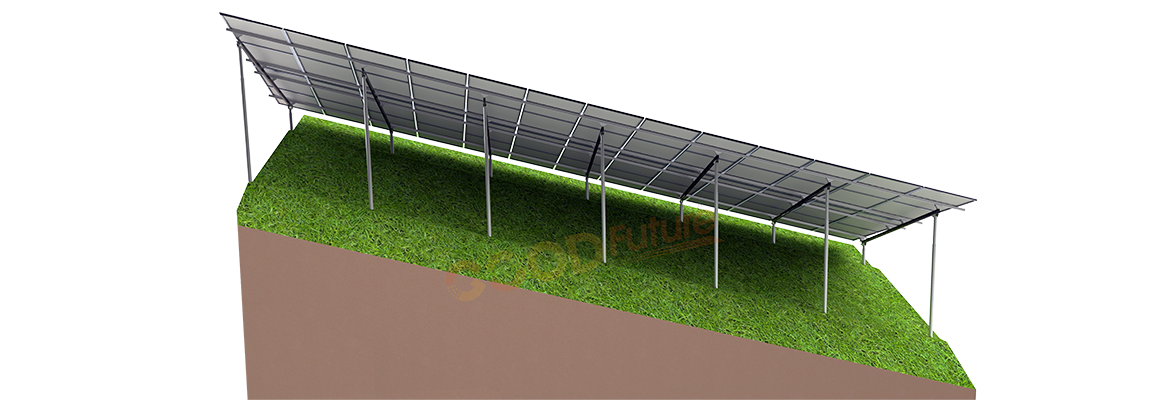

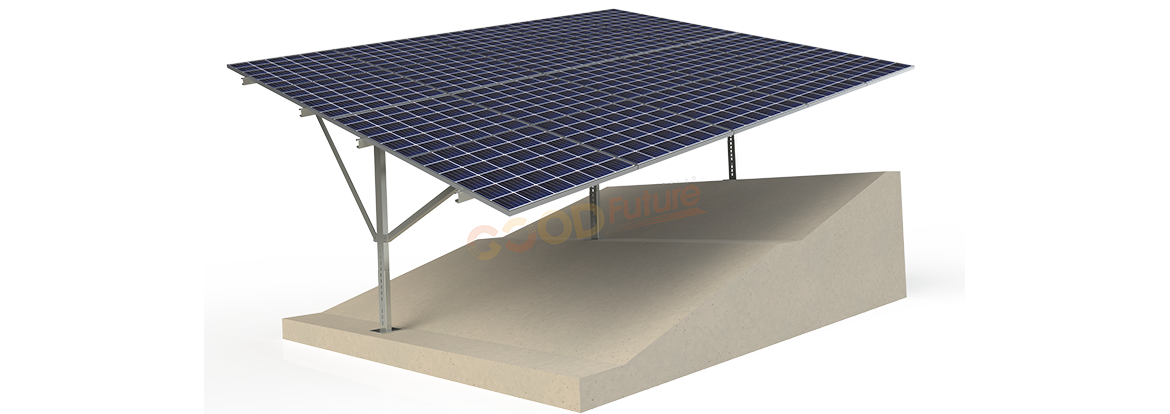

Architecture	2P: Mono / Bi post
Ground clearance	0.6 m minimum
Module fixation	Self-grounded clamp
Materials	Steel
Coatings	Atmospheric conditions: HDG Post Protection: design based on geotechnical survey
Wind loads	Structure adapted to site specific conditions
Snow loads	Structure adapted to site specific conditions
Type of posts	C posts
Type of foundations	Post ramming or concrete slab
Ramming tolerances	N/S: ±25 mm; E/W: ±25 mm; Z: ±30 mm; Tilt: ±1.5°; Twist: ±1°
In fiel operations	No specific operations on site (no welding, no driling …)
On site training & commissioning	On site supervisor dedicated to each project

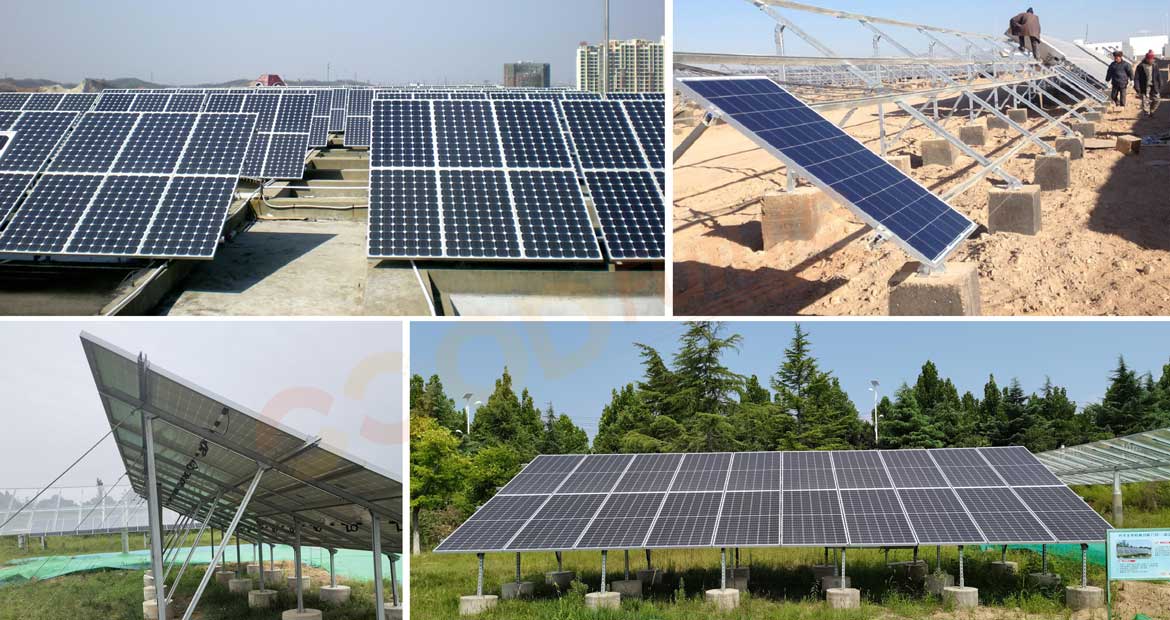

JG Solar Panel Ground Mount Solar Racking System Cases
